Micro Flow : GB 100
Product Descriptions

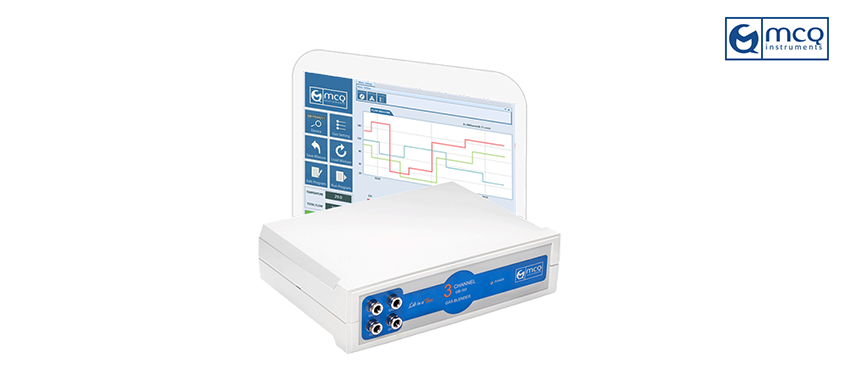

The MCQ Instruments Gas Blender 100 is the solution for micro flows gas mixing and gas dilution problems. Specifically designed for an up to 3 channels dynamically blending of non-corrosive gases. A whole laboratory in a single box, compact, cost-effective, highly accurate, trustable and easy to integrate.
| Specifications | |
| 3 Channels GAS Mixer | |
| Each Channel | 0 – 500 mL/min |
| Total Mixture Flow Rate | Up to 1,5 L/min |
| Accuracy | 1.0% |
| Repeatability | 0,16% of reading |
| Response time | 50 ms |
| Power Supply | 16-36 VDC – Min1,5 A |
| Gases | N2, O2, CO2, CH4, Air |
| Inlet Gas Channel | 3 Inputs |
| User Interface | Gas mixing software. |
| 1 LED signal interface | |
| Certifications | CE, TUV, cTUVUS, Made in Italy |
| Software bundle | |
