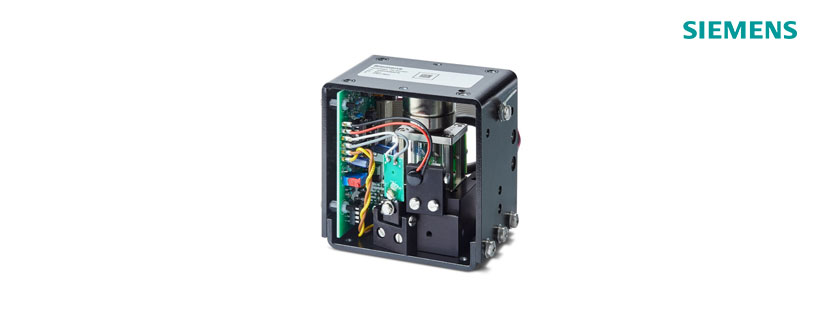

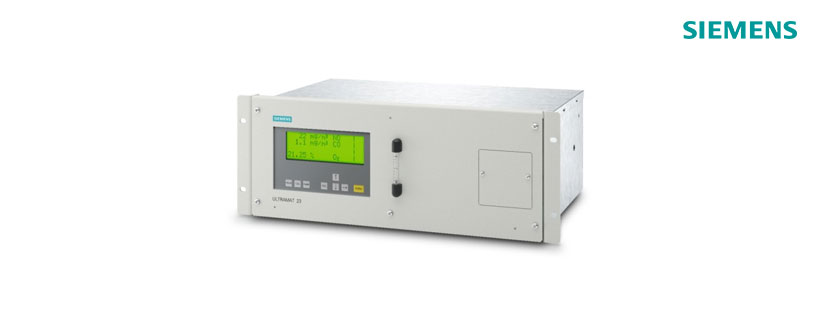

GAS ANALYZER : ULTRAMAT 23
Product Descriptions
Advanced Analytics Made Into A Commodity
Due to its multi-component design with UV and NDIR technology for measuring up to three IR-active components and optionally available electrochemical sensors (O2 and H2S measurement), the ULTRAMAT 23 offers high cost efficiency and space savings.
Benefits at a glance
• Highly cost-effective because calibration gases are not required (AUTOCAL with ambient air, depending on the measuring component)
• High selectivity due to multilayer detectors e.g. low cross-sensitivity to water vapor
• Cleanable cuvettes: Cost savings through further use in case of contamination
• Menu-guided operation in plain text
• Open interface architecture (RS 485, RS 232; PROFIBUS, SIPROM GA): Simplified process integration; remote operation and control
Technical data
| Max. number of components | 4 |
| Components | E.g., CO, CO2, NO, SO2, CH4, O2, H2S |
| Smallest measuring range | Component specific: 0–50 / 0–500 vpm |
| Housing | 19″ withdrawable unit |
