G601 CA ENERGY Portable flow meter
Product Descriptions
The FLUXUS G601 CA Energy is the ideal tool for carrying out complete energy efficiency tasks in the industry as well as within facility management (e.g. according to DIN ISO 50001 standards) by allowing the measurement of compressed air flow rates as well as the monitoring of thermal energy quantities and the flow rate determination of any kind of liquid or gaseous media with just one device.
It is engineered to survey whole compressed air infrastructures, balancing the facilities, measuring on nearly every individual leg, determining the efficiency of compressors and last, not least, quantify and localise leakages.

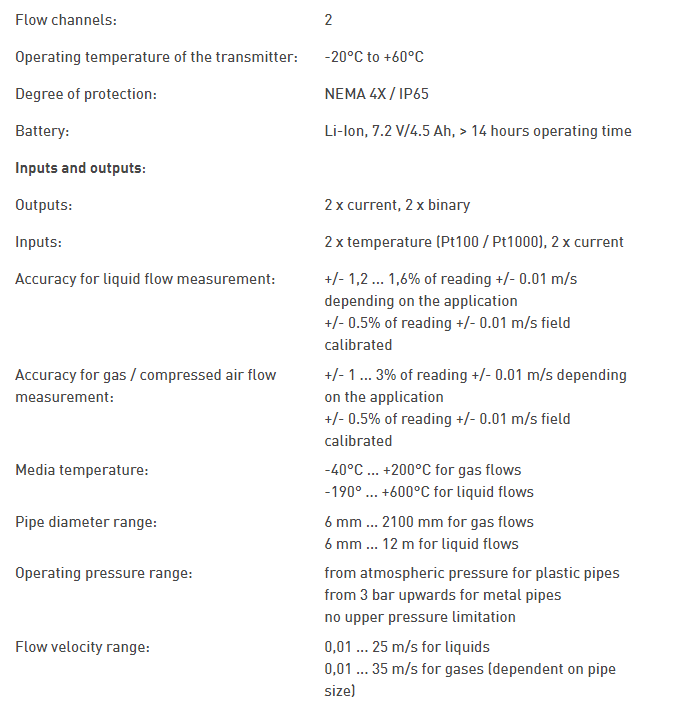

Technical Data
– The ideal measuring device for complete energy efficiency tasks (e.g. according to DIN ISO 50001)
– Non-invasive measurement for precise bi-directional, highly dynamic compressed air, gas, liquid and thermal energy flow rates
– Ideal for inner pipe diameters ranging from DN6 to DN2100 (DN6000 for liquids) and pressures from 3 bar upwards (at plastic pipes at atmospheric pressure and below)
– Portable, easy-to-use flow transmitter with 2 flow channels, multiple inputs/outputs and an integrated data logger with a serial interface
– Automatic loading of calibration data and transducer detection reducing set-up times and providing precise, long-term stable results
– Li-Ion battery providing up to 14 hours of measurement operation
– Proven clamp-on technology, transducers resistant to dust and humidity
– Probe for wall thickness measurement available
– QuickFix for fast mounting of the flow transmitter in difficult conditions
