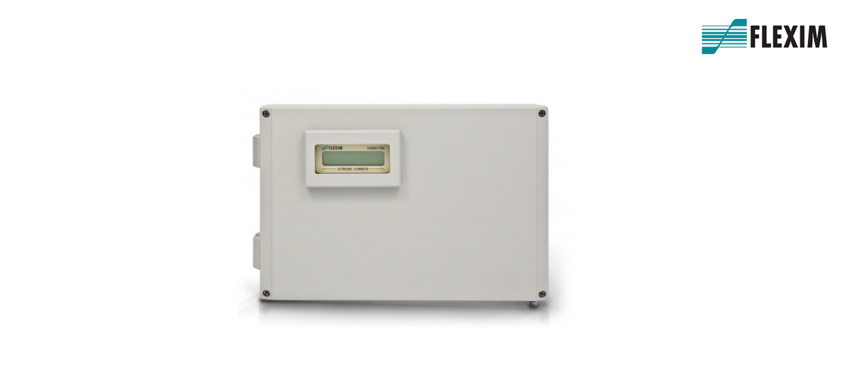

FLUXUS WW
Product Descriptions
Operators of sewage networks and treatment plants are striving to improve the energy efficiency of their systems. With pumps consuming a large amount of electrical energy, there is a strong demand to monitor and control the flow in pumping stations more accurately. A further reason to equip pumping stations with flow meters is to be able to react effectively in the event of heavy rainfall. In such cases sewage levels at pumping stations can rapidly reach critical levels and operators need to know exactly how much each pump in their system is transporting in order to take appropriate action. The FLUXUS WW is the ideal flow meter for retrofitting at pumping stations and treatment plants. It is installed without pipe modification, intrusion or process interruption, is maintenance-free and delivers accurate and reliable flow measurements.
Advantages
– Very low installation costs, highly cost-effective
– Maintenance-free
– Non-intrusive, no process interruption for installation – easy retrofit
– Measures fluids with gas or solid content of up to 10%
– Suitable for disturbed flow profiles as well as very short inlet and outlet straight lengths
– Permanently drift-free
Technical Data
| Pipe diameter range | : up to 6500 mm |
| Pipe material | : All |
| Medium | : Water / Wastewater |
| Solid or gas content | : up to 10 % in volume |
| Flow velocity range | : 0.01…25 m/s |
| Accuracy | : ±0.5% of reading ± 0.01 m/s (field calibrated) |
| ±1% of reading ±0.01 m/s | |
| (out of the box – application dependent) | |
| Repeatability | : 0.15 % of reading ±0.01 m/s |
| Degree of protection Transducers | : IP68 and ATEX zone 1 optional |
| Degree of protection Transmitter | : IP65 |
| Flow channels | : 2 |
| Communication Interface | : RS232, Modbus RTU |
| Data logger capacity | : > 100,000 values |
| Outputs | : 2x Current, 3x Binary |
