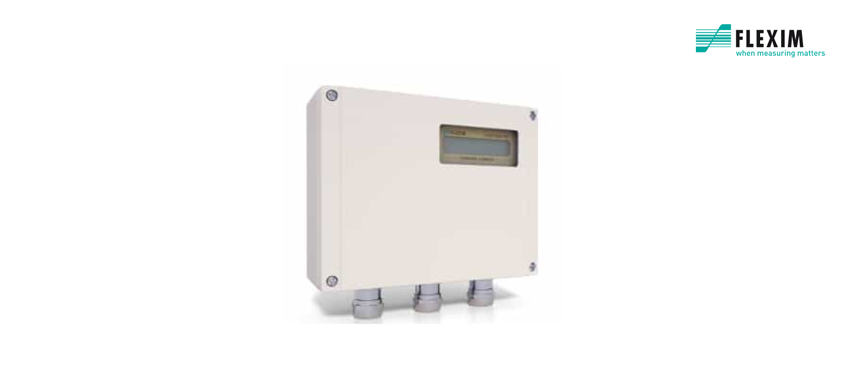

FLUXUS F502
Product Descriptions
– Simple, reliable and cost effective thanks to non-intrusive design
– Tamper-proof storage of measuring data
– Accurate thermal energy measurement thanks to calibrated ultrasonic transducers and temperature sensors (acc. to DIN EN 1434-1)
– Extremely high measuring dynamics from the lowest to the highest flow velocities – captures even the slightest flows during night time
Applications
FLEXIM FLUXUS F502 flowmeter uses include heat quantity measurement within :
– Thermal energy monitoring in heating & chiller systems in facility management eg shopping centres, hospitals etc
– Refrigeration and air-conditioning systems
– Refrigeration compressors (also in the gas phase)
– Absorption chillers
– District heating transport pipelines and transfer stations
– Energy consulting / audits
– Energy-Contracting
– Geothermic Plants
| Technical Data | |
| Measurement uncertainty | : ±1.5 % v. MW ±0.03 ft/s |
| Repeatability | : 0.25 % of reading ±0.03 ft/s |
| Flow velocity range | : 0.03 to 82 ft/s |
| Ex zone transmitter | : only safe area |
| Power supply | : 230VAC, 12/24VDC |
| Available transducer | : Shear Wave |
| for pipe sizes range | : 0.5 inch to 20 inch |
| for temperature range | :-40°F to +212°F |
| Outputs | : 2x 4-20mA active, 2x pulse/binary |
| Inputs | : 2x Pt100/Pt1000 |
| Digital communication | : Modbus RTU/TCP, BACnet MSTP/IP |
