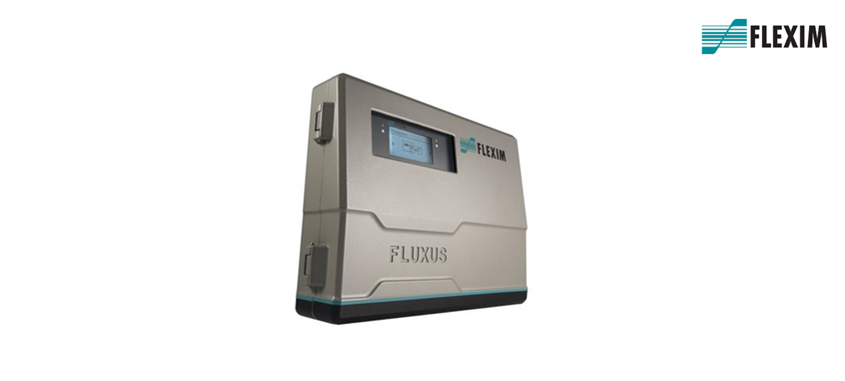

FLUXUS WD
Product Descriptions
The FLUXUS WD Series non-invasive ultrasonic flow meter is the ideal solution for metering points in the drinking water network. Due to the use of its clamp-on technology, the WD Series that does not require any work that affects the integrity of the pipe. This enables a very simple and cost-effective installation of flow measurement points within an existing water supply network.
Advantages
– Very low installation costs and zero pipe interference
– Extremely accurate down to flow velocities as low as 0.01 m/s
– No zero calibration needed and permanently drift-free
– Permanent coupling pads
– IP68 transducers
– Transducers can be permanently buried (no chamber required)
– Drift-free measurements
– Reliable and accurate data
– Low installation costs
– Built to last
– Works on difficult pipes
Technical Data
| Quantities of measurement | : Volume Flow, Flow Velocity |
| Medium | : Water |
| Pipe diameter range | : 200mm … 6500mm |
| Flow velocity range | : 0.01 m/s … 25 m/s |
| Measurement accuracy | : ± 1.5 % of reading, ±0.01 m/s |
| Repeatability | : ± 0.15 % of reading, ±0.01 m/s |
| Flow channels | : 1 (optional 2 for WD400, WD1200 and WD6500) |
| Degree of protection | : Transducers: IP68 or IP67, Transmitter: IP66 |
| Communication Interface | : Modbus, M-Bus, BACnet, RS485, Foundation Fieldbus, Profibus PA |
| Outputs | : 1x Current, 2x Binary |
| Loggable values | : WD400, WD1200, WD6500: max. 800.000 values |
