Field Olfactometer
Product Description

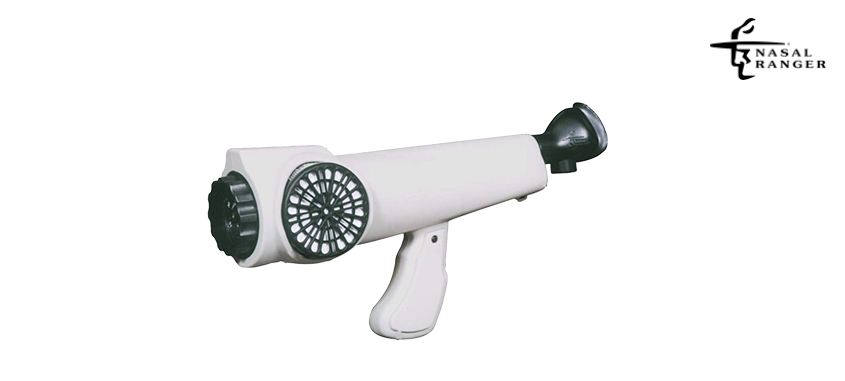

Nasal Ranger is the “sstate-of-the-art” in field olfactometry for confidently measuring and quantifying odor strength in the ambient air. The portable Nasal Ranger Field Olfactometer determines ambient odor Dilution-to-Threshold (D/T) concentration objectively with your trained nose.

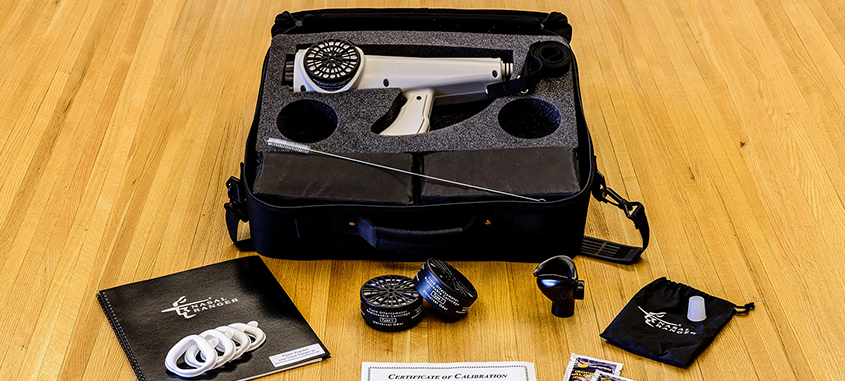

The Nasal Ranger Package includes the Nasal Ranger with Nasal Mask, Odor-Filter Cartridges, Shoulder Strap, Carrying Case, as well as and extra pair of Odor-Filter Cartridges, 10-Comfort Mask Seals, and 10-Isopropyl Alcohol Mask Wipes.
• Precision instrument for measuring ambient-odor Dilution-to-Threshold (D/T).
• Portable odor detecting and measuring – Scentometer, US-EPA protocol.
• Discrete calibrated dilution ratios: standard and custom ranges available.
• Inhalation Rate “feed-back” for 16-20 liters per minute calibration range.
• Easy to change odor filter cartridges.
• Ergonomic, comfortable sniffing mask with inhale & exhale ports.
| Technical Data | |
| tandard Dilution-to-Threshold (D/T) Ratios | 2, 4, 7, 15, 30, and 60 |
| High Range D/T Ratios available | 60, 100, 200, 300, 400, and 500 |
| Accuracy | +10% Calibration |
| Weight | 2.0-lbs (0.91 kg) |
| Dimensions | 35.5 x 19 x 10 cm |
| Inhalation Rate | 16-20 LPM |
| Operating Range | 32 to 104F, 0 to 40C |
| Power Requirements | Standard 9-Volt battery |
| Patent | U.S. Patent No. 6,595,037 |
| EMC Verification: Emissions | EN61326:1997, Class B |
| Immunity | EN61326:1997, Industrial Location |
| Markings | CE 89/336/EEC (EMC); 92/59/EEC (General Safety) |
