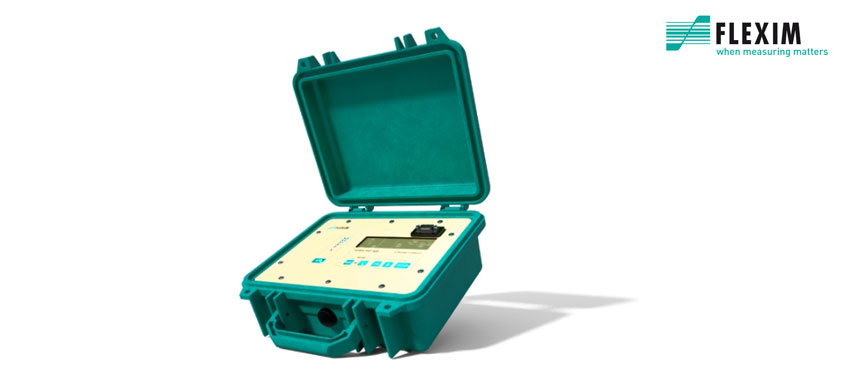

F401: Portable Flow Meter for the Water and Wastewater Sector
Product Descriptions
The FLUXUS F401 is FLEXIM’s dedicated single channel portable flow meter for applications in the municipial water and wastewater sector offering long term stable and precise bidirectional flow measurements in remote areas outdoor.
As the measurement is carried out from the pipe wall outside and without contact with the water column, there is no need to enter the piping system or to interrupt supply. Thus, the FLUXUS F401 is the ideal tool for service and maintenance activities, for long or short term monitoring, data logging and existing meter verification.

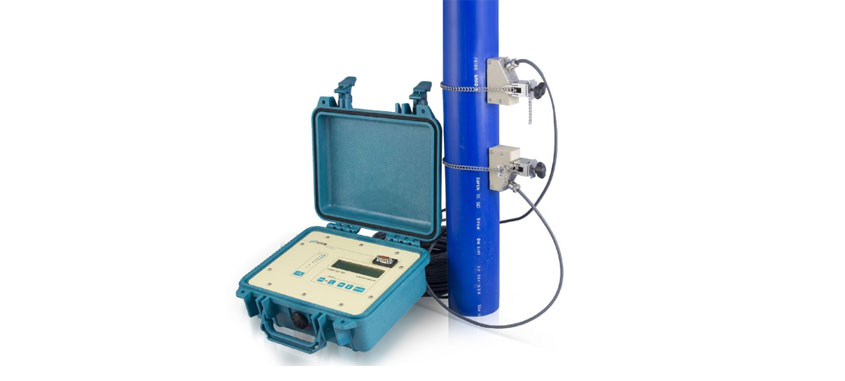

The FLUXUS F401 is equipped with water-tight, submersible IP68 transducers, with the flow transmitter residing inside a IP67 Pelicase. Combining its internal battery capacity with an additional external battery suitcase (IP67 protected), the F401 offers continous remote measurements outdoors up to a week in duration.
– Non-invasive flow measurement – not causing process shut downs or interrupting supply
– Long term remote measurements outdoors of up to one week
– Measurement ready in less than 5 minutes
– Highly rugged water-tight transducers (IP68) and transmitter
– User-friendly menu navigation – the firmware is specifically adapted to the needs of the water industry
– For nominal diameters of 25 mm to 3 m and flow velocities of 0,01 to 25 m/sec
– Independent of pipe material and manufactured quality
– Digital signal processor (DSP) and signal processing ensure stable and reliable results even under difficult measurement conditions
High measuring accuracy, even at low flow velocities

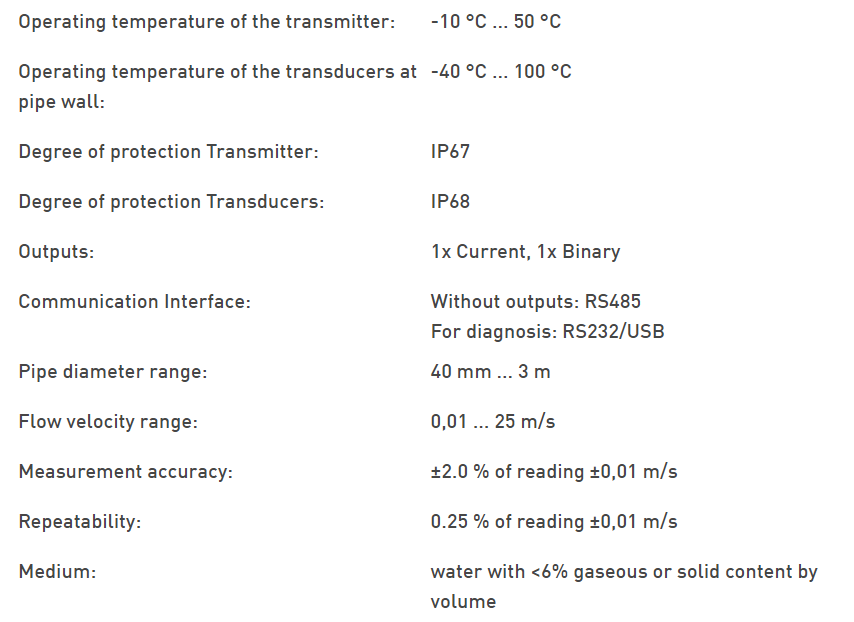

Technical Data
