EyeCGas Mini Camera Imaging Gas Optical
Description

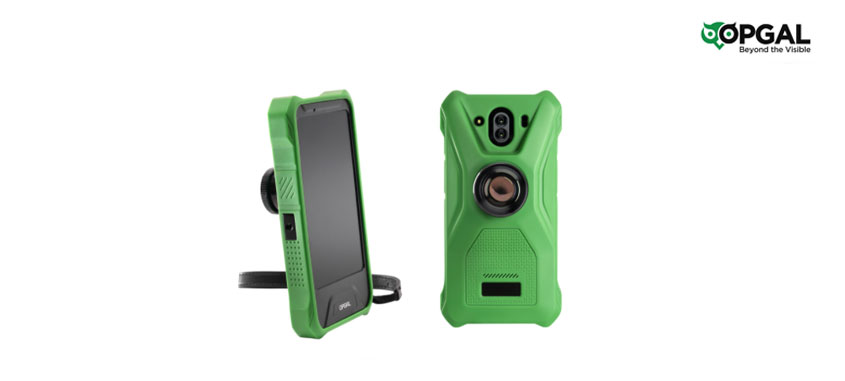

EyeCGas® Mini is a compact and user-friendly uncooled OGI camera for gas leak detection. The Mini comes in multiple models, which, using different kind of filters, can detect Methane, SF6, Ammonia, R134 and more.
Feature-rich, this small handheld camera allows wireless communication, data streaming, image fusion, thermography, video & audio recordings, and more. Compact and durable, the EyeCGas Mini revolutionizes the way inspections are held – giving you LDAR power in the palm of your hand. It is the ideal cost-effective tool for LDAR solutions.
Product Features |
|||
 |
Simple to Operate Simple and easy operation with minimal training |
 |
Thermography Mode Thermographic imaging & color palettes for better versatility |
 |
Quantification* EyeCSite Software integration enabling accurate measurements |
 |
GPS Built-in GPS allows location identification of leaks |
 |
Fusion Mode Image fusion (day and thermal) for improved orientation |
 |
Long Operating Time More than 5 hours operating time |
| Technical Specifications | |
| Image and optical data | |
| Sensor Resolution | 384 x 288 |
| Focal plane array | Uncooled Microbolometer |
| Spectral range | 7.5 – 9 µm |
| Detector pitch | 17 µ |
| Thermal sensitivity | >50mK at 25 °C |
| Gas sensitivity | >10 gr/hr (Methane) |
| Field of view | 19° x 14° Manual Focus |
| Focal lengte | 20mm |
| F# | 1.0 |
| Digital zoom | Included |
| Image presentation and frame rate | |
| Image frequency | 9 Hz IR, 30Hz Day |
| Display | OLED, 6 Inch, 1080×2160 pixels, 16 M Colors, Touch-screen |
| Day digital camera | 12 MP |
| IR color pallets | Hot White / Hot Black / Iron /Rainbow / Grey / Vivid |
| Image modes | Fusion, Picture in Picture |
| Video streaming | TBA |
| Image format | BMP, AVI |
| General | |
| THERMOGRAPHY | 10 -85 °C |
| Accuracy | ± 3 °C |
| Data Storage | 128 GB |
| Interface | Bluetooth, Wi Fi |
| Size | 180 mm x 80mm x 60 mm |
| Weight | 600 gr |
| Operating time | >5 hours |
| Charging | Standard USB C por |
