EyeCGas 2.0 VOC Gas Imaging
Product Descriptions

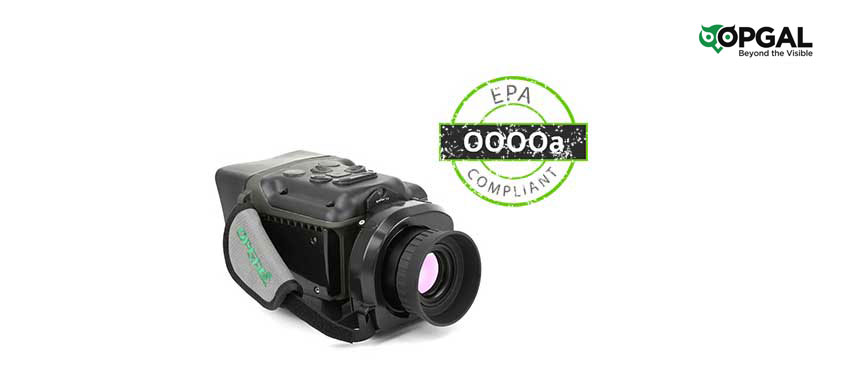

EyeCGas® 2.0 is a handheld OGI camera for the detection of fugitive gas emissions for over 400 hydrocarbon and VOC gases, including Methane and Benzene. EyeCGas 2.0 adheres to the EPA’s “Quad Oa” (OOOOa) regulations, and is used globally across the industry for LDAR compliance. Opgal’s EyeCGas 2.0 is specially designed for detecting gas leaks in the harsh conditions of the oil & gas industry. It is the only OGI camera that is certified for ATEX zone 2 and UL class I Div II, hazardous environments. The EyeCGas 2.0 camera allows for the inspection of vast areas in a plant. It contains an automated and simple user interface, visualizing the infrared image on a large color LCD. It also has applications in the agribusiness industry for Hexane leak detection, and anywhere else that fugitive emissions need to be monitored for regulation, compliance and product containment. Based on customer feedback, EyeCGas 2.0 has a wide range of improvements, making it the best OGI camera in the world. EyeCGas 2.0 by Opgal helps you detect and repair gas leaks inside the facility limits without the need of a hot work permit, allowing video and audio recording, while maintaining safety.
Features
– Handheld thermal imaging OGI camera
– Rugged and sealed for industrial use
– Certified for use in ATEX zone 2, UL class I Div II, and CSA hazardous locations
– Complies with the EPA’s Quad Oa (OOOOa) regulations
– Built-in Wi-Fi and Bluetooth capabilities
– High sensitivity
– Enhanced image processing and thermography modes for improved gas detection and temperature measurement
– LDAR ready capabilities: integration with LDAR software, real time component tag syncing, pre-integration with Method 21 analyzers
– Field replaceable batteries
– Field replaceable lenses
– Multiple lens options
– Glare shield
– Optional Accessories:
75mm f#1.2 Lens – FOV 7.3°x 5.5°- P/N 8G9T7500A
Applications:
Refineries, well heads, storage tanks, transmission pipes, compressor stations, process towers, gas stations, LNG terminals, underground storage tanks, bio-gas and landfills, offshore oil rigs, smart LDAR, etc.
