ELR610M : Heat Shield
Product Descriptions

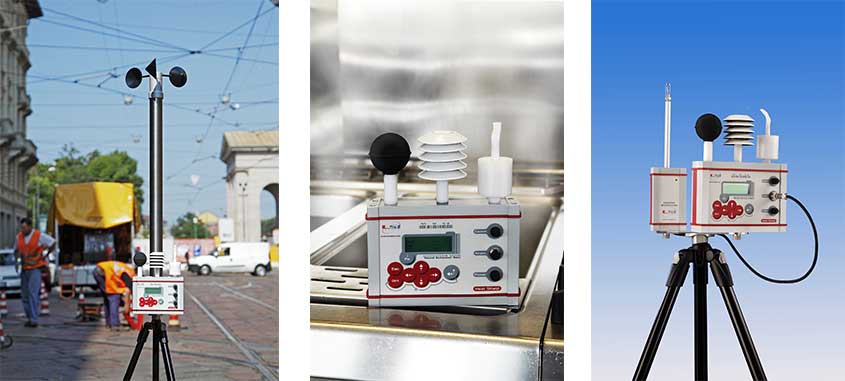

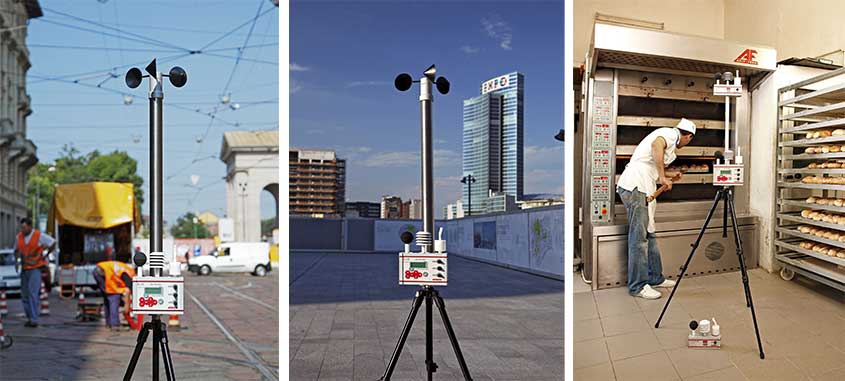

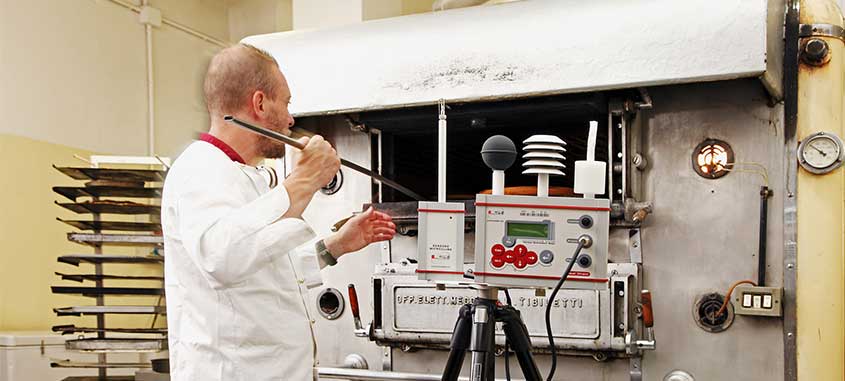

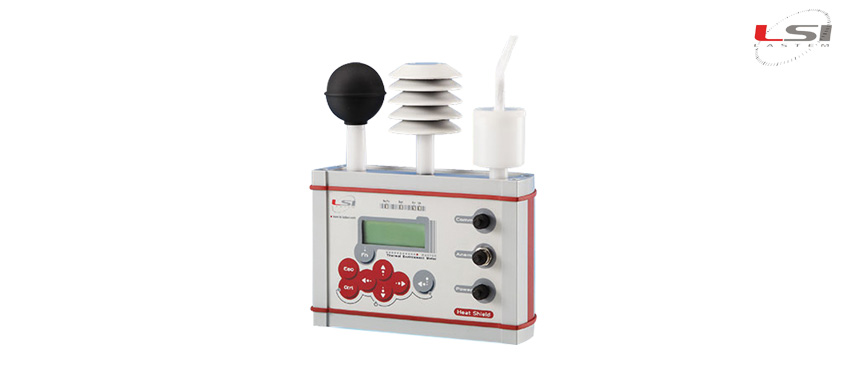

Heat Shield includes globe temperature, wet bulb temperature the, dry bulb temperature and relative humidity and displays on-line WBGT indoor & outdoor index, Heat Index and Humidex. Two models are available, one (ELR610M) with 2” (5 cm) sphere globe temperature sensor the other (ELR615M) with 6” (15 cm) sphere.
| Natural Wet Bulb Thermometer (Cotton wick immersed into a built-in reservoir with detachable cover) | |
| Element | 1/3 DIN-A Pt100 |
| Range | -20 to 60°C |
| Accuracy (0 to 60°C) | ± 0.3°C |
| Globe Thermometer 2” sphere | |
| Element | 1/3 DIN-A Pt100 |
| Range | -20 to 60°C |
| Accuracy (0 to 60°C) | ± 0.3°C |
| Dry Bulb Thermometer (Equipped with radiant screen) | |
| Element | 1/2 Pt100 |
| Range | -20 to 60°C |
| Accuracy (0 to 60°C) | ± 0.8°C, ±0.4 °C (10-40°C) |
| Relative Humidity Sensor | |
| Element | Capacitive sensing element |
| Range | 0÷100% |
| Accuracy (0 to 60°C) | 1.8 %RH (10-90%) |
| ESV125 Air Flow (optional)* | |
| Element | Hot wire (Tungsten wire diam. 9,45 μm) |
| Range | 0.01 to 20 m/s |
| Accuracy (0 to 60°C) | to 10 cm/s (0,5 to 1,5 m/s) 4% (>1,5 m/s) |
| DNA205 Anemometer (optional) *not supported on satellite units | |
| Element | Cup anemometer for outdoor use |
| Range | 0 to 75 m/s |
| Accuracy (0 to 60°C) | 2, 5% |
