เครื่องวัดประสิทธิภาพคอมเพรสเซอร์ รุ่น DS 500 PM mobile
Product Descriptions

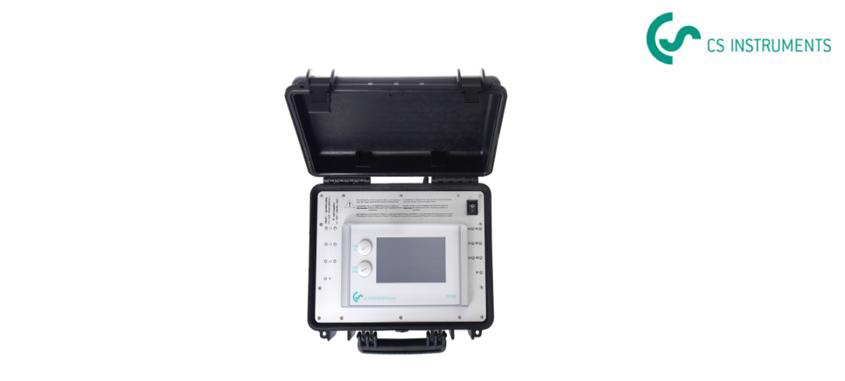

DS 500 PM mobile – efficiency measurement for compressors
All-in-one measurement: electrical energy, pressure, dew point, temperature and con- sumption
Besides common measurements such as compressed air consumption or humidity, even more complex measurement tasks can be tackled with this all-round mobile device. With the DS 500 PM mobile, conducting an energy analysis according to DIN ISO 50001 is child’s play.
Special features DS 500PM mobil:

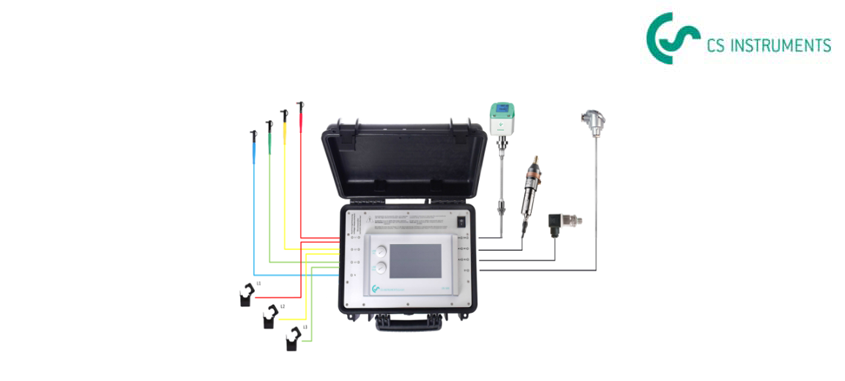

• Magnetic voltage measuring tips for picking off the voltage during operation.
• Hinged current transformers encompass the conductors of phases L1, L2, L3. Can also be used during operation.
For universal use:
Up to 11 devices can be connected, including third-party sensors incl. power supply
Reliable:
Reliably stores all measured values on a memory card. Easy readout possible via USB stick
Energy analysis according to DIN ISO 50001:
• Costs in EUR ($) per m³ (cubic foot) air generated
• Specific output in kWh / m³ (cubic foot)
• Consumption of single lines including summation
| DS 500 PM MOBILE TECHNICAL DATA | |
| Case dimensions | 360 x 270 x 150 mm |
| Weight | 4.5 kg |
| Material | Diecast, front foil polyester, ABS |
| Sensor inputs | 3/7/11 sensor inputs for analogue and digital sensors; freely allocatable. See options |
| Digital CS sensors for dew point and consumption with FA/VA series SDI interface, | |
| RS 485/Modbus RTU digital third-party sensors. | |
| Analogue CS Sensors for pressure, temperature, clamp-on ammeters preconfigured. | |
| Analogue third-party sensors 0/4…20 mA, 0…1/10/30 V, pulse, Pt 100/Pt 1000, KTY | |
| Voltage supply for sensors | 24 VDC, max. 130 mA per sensor, integrated mains unit, max. 24 VDC, 25 W. |
| For 8/12 sensor input version: 2 integrated mains units, each max. 24 VDC, 25 W | |
| Interfaces | USB stick, Ethernet/RS 485 Modbus RTU/TCP, SDI (other bus systems on request), |
| webserver optional | |
| Memory card | Micro SD memory card, memory size 8 GB |
| Power supply | 100…240 VAC, 50-60 Hz |
| Colour display | TFT transmissive 7″ touch panel, graphics, curves, statistics |
| Accuracy | Please see sensor specifications |
| Operating temperature: | 0…50° C |
| Storage temperature: | -20…70° C |
