DS 400 mobile
Product Descriptions

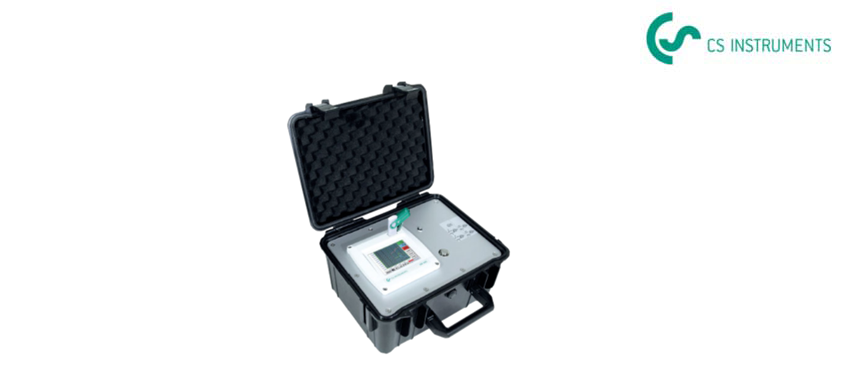

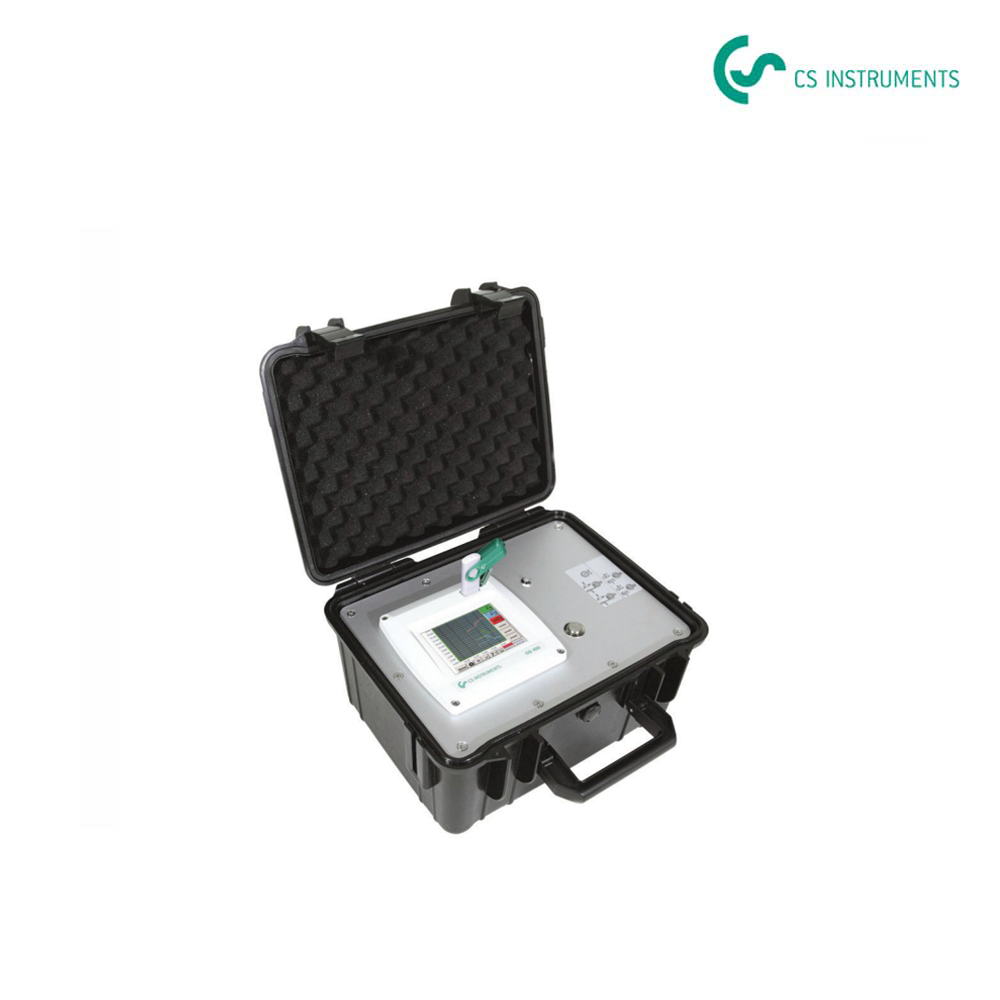

Affordable, mobile chart recorder – DS 400 mobile
with integrated data logger and up to 4 sensors connectable, including voltage supply for all sensors.
Your advantages of DS 400 mobile at a glance
• Easy and clear layout: Very easy operation via 3.5″ color display with touch panel
• Versatile: Up to 4 sensors/meters connectable also third-party sensors/meters including power supply
• Reliable: Stores all measured values on a memory card, easy reading out via USB stick possible
• Intelligent energy analysis: Daily/weekly/monthly evaluations mathematic function for internal calculations, e.g. the typical key data of a compressed air plant
Software options
• Integrated webserver
• Mathematic calculation function
• Totalizer function
Hardware options
• Ethernet / RS 485 interface
• Additional sensor inputs (digital or analogue) selectable

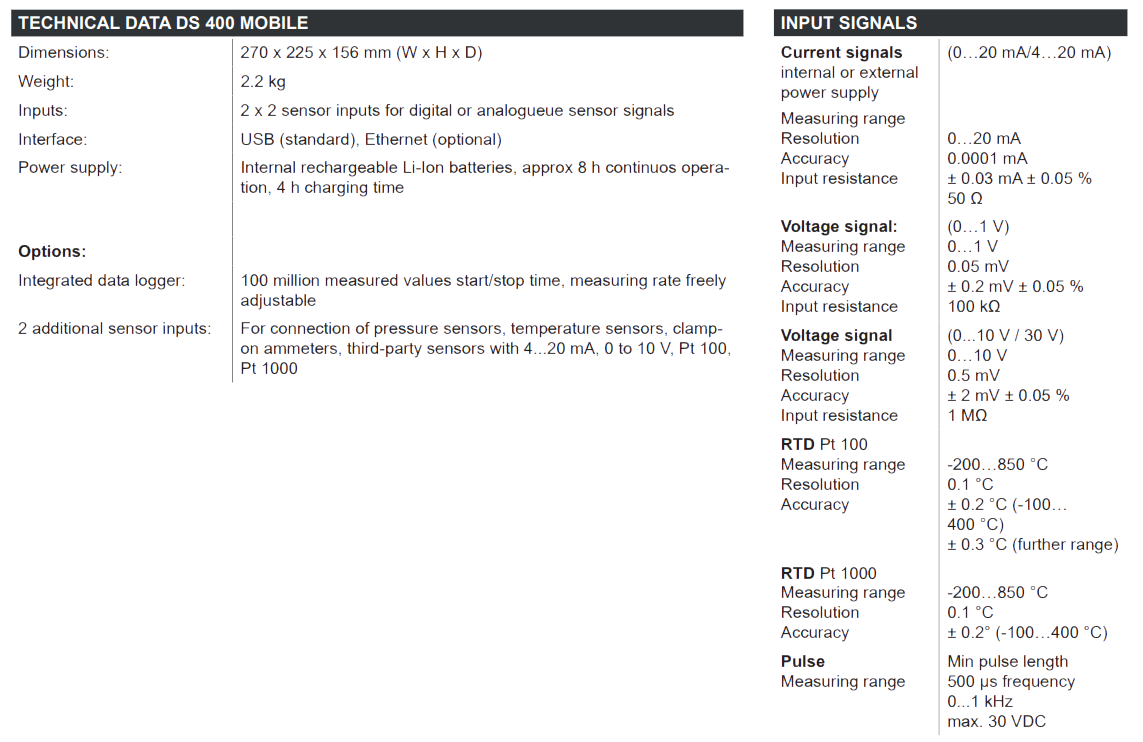

| TECHNICAL DATA DS 400 MOBILE | |
| Dimensions | 270 x 225 x 156 mm (W x H x D) |
| Weight | 2.2 kg |
| Interface | USB (standard), Ethernet (optional) |
| Power supply | FInternal rechargeable Li-Ion batteries, approx 8 h continuos operation, 4 h charging time |
| Options: | |
| Integrated data logger | 100 million measured values start/stop time, measuring rate freely adjustable |
| 2 additional sensor inputs | For connection of pressure sensors, temperature sensors, clampon ammeters, |
| third-party sensors with 4…20 mA, 0 to 10 V, Pt 100, Pt 1000 | |
