controller MIQ/TC 2020 3G

Product Descriptions
– A solution for every application

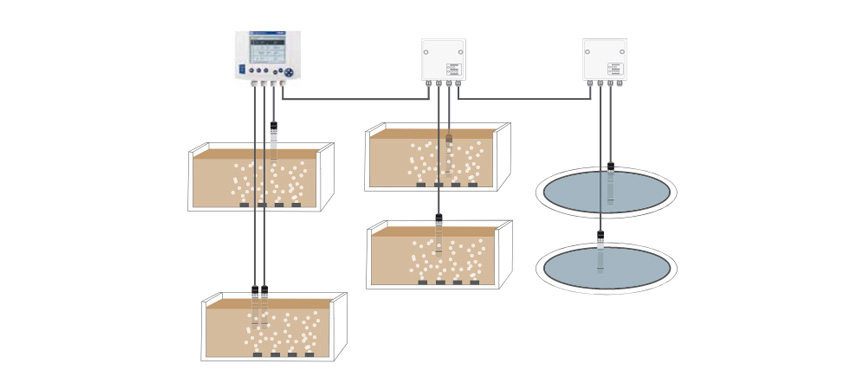

– up to 20 sensors can be connected, all IQ parameters are measurable
– Flexible and ready for the future
– the IQ Sensor Net can be expanded as needed thanks to its modular designThe high-performance processor of the terminal/controller MIQ/TC 2020 3G coordinates all tasks inside the network. The USB interface allows quick data exchange via USB stick or directly to external systems. The system status LED provides reliable and quick information about the function and the system status.

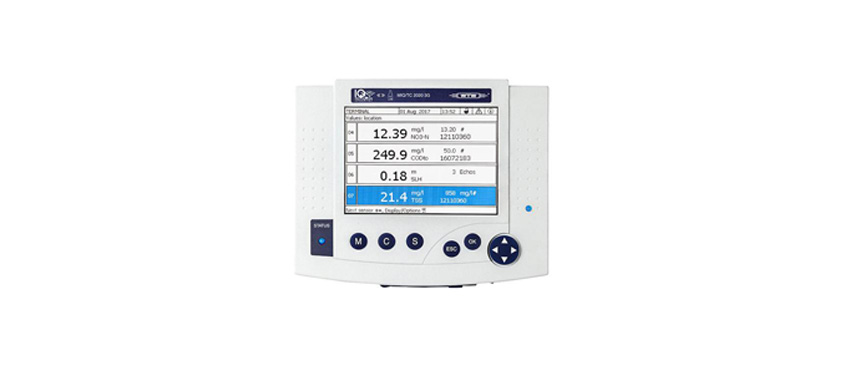

– The system stores the measured values of a new connected sensor and all configuration data automatically. The large, colored display and the large buttons ensure a clear and customer friendly operation at any conditions.
When integrating two MIQ/TC 2020 3G into system, the system security and therefore the availability of the total system is ensuredby the controller-redundancy-function. This lets you use one MIQ/TC 2020 3G as a terminal and a controller (fixed installation), and a second one as a mobile terminal. By including this into the network, you can have remote communcation as well as remote maintenance.For the remote maintenance from a PC, you need to install the  software IQ Software Pack CONNECT. This setting can be made via a user interface according to the MIQ/TC 2020 3G terminal. In addition, you have the option to transfer measuring and configuration data of the system to a computer. For the control with the IQ Web Connect the MIQ/MC3 is required.
Technical Data
– Connectable sensors   : up to 20 sensors
– Power output and relay : up to 48 x 0(4) … 20 mA and relay (total)
– Field bus communication : PROFIBUS-DP, MODBUS RTU, Ethernet/IP, MODBUS TCP, PROFINET
– USB interface : for software updates and data backup
– Data memory : up to 526.600 data sets
– BackUp controller function  :   Yes
– Integrated lightning protection : Yes
– EMC protection   :  Yes
