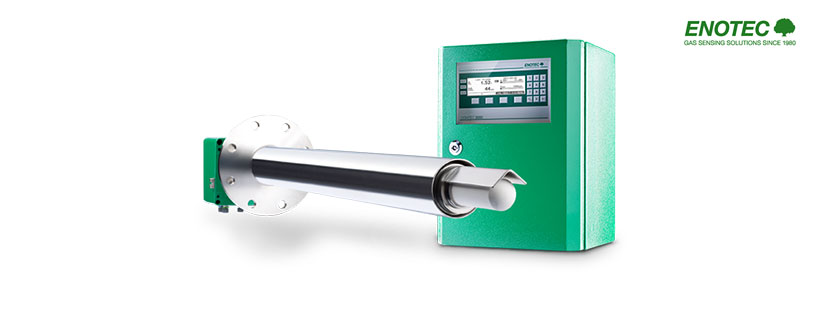

COMTEC® 6000 : O2 Analyser
Product Descriptions
COMTEC® 6000 is the world‘s first InSitu analyzer for measurement of oxygen and combustibles in flue and process gases for optimal combustion control.
The COMTEC® 6000 is an InSitu analyzer for measurement of O2 and COe (sum of unburned molecules – CO, H2, CxHy) in flue and process gases. The correlation of the O2 and COe measurements enables combustion fine tuning in real time.
Both sensors are located within the process at the tip of the probe installed directly in the flue gas duct. This allows for fast and continuous flue gas data measurement, enabling fast response rates to changes in the flue gas composition.
The analyzer was designed with low maintenance in mind, with minimal calibration requirements and user-friendliness. Furthermore high costs for investment and maintenance, especially when comparing to extractive analyzers, can be avoided.
Applications
– Power generation
– Iron and steel industry
– Waste incineration
– Monitoring of inert processes
– Petrochemical industry
Features
– InSitu measurement in real-time
– Overview of calibration history
– Low-maintenance
– Self-monitoring
– Sensor life expectancy on display
– Gas tight sensor construction
Technical Data
| Insertion depth of probe | up to 3690 mm |
| O2 / COe ranges | 0 – 25 % O2 min.: 0-1000 ppm / max.: 0-5000 ppm COe (others on request) |
| Sensor accuracy O2 |
< 0.5 % of measured value or 0.02 Vol % O2 (higher value valid) |
| Sensor accuracy COe | better 5 % of range end |
| Reaction time |
< 1 sec. (on test gas) |
| Process gas temperature |
max. 500 °C max. 1400 °C (with cooling protection tube) |
| Ambient temperature | -40 °C to 80 °C (probe) -20 °C to 55 °C (electronic unit) |
| Interface | MODBUS RTU via RS232/RS485, HART, FIELDBUS, ENOTEC REMOTE |
| IP code | IP65 (probe) IP66 (electronic unit) |
