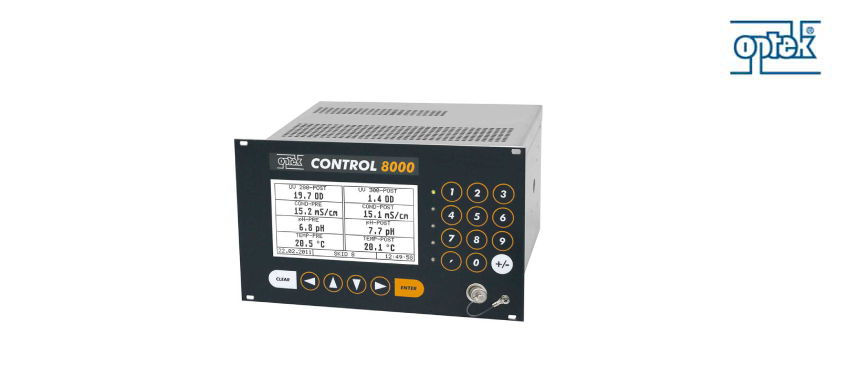

C8000 Multi Channel Photometric and Electrochemical
Product Descriptions
Multi channel converter for all optek photometric and conductivity sensors and electrochemical pH electrodes. Flexible configuration of sensors, measuring ranges, units and product specific setups make the C8000 converter series a powerful device in process monitoring in both conventional and single-use systems.
The Control 8000 universal converter operates optek photometric sensors along with 2 pH-probes and 2 conductivity sensors (optek ACF/ACS series) simultaneously. All measurements (2 x optical, 2 x pH, 2 x conductivity and 2 x temperature) are transmitted with 8 standard 0/4-20 mA-outputs and may also be displayed as text and bar graphs.
Used For
– For UV, VIS, NIR Absorption sensors and pH and conductivity sensors
– Color scales:
• APHA / HAZEN / Pt/Co color
• AOCS (Method Cc 13b-45) color
• ASTM (D1500) color
• EBC color
• ASBC color
• Gardner (ASTM D1544) color
• KLETT color
• Saybolt (ASTM D 156, D 6045) color
– Turbidity scales:
• CU (concentration units)
• ppm (DE)
• FTU
• FAU
• EBC
– Electrochemical scales:
• Conductivity: 0 – 850 mS/cm
• pH: 0 – 14

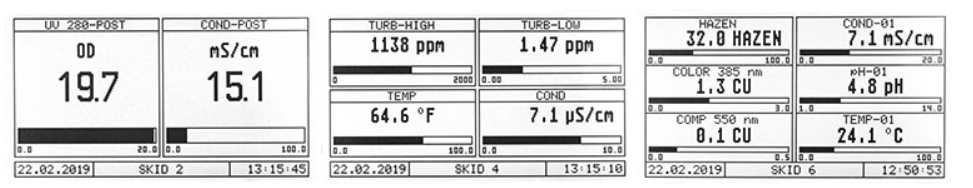

Display Modes
– 2 to 8 simultaneously displayed values (configurable)
– Numeric with bar graph
