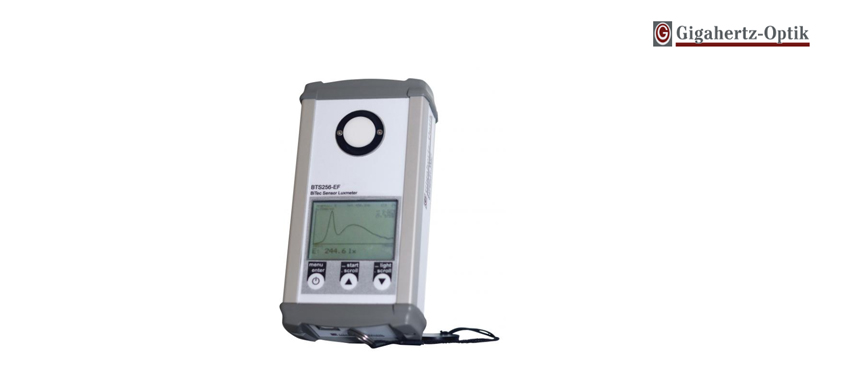

BTS256-EF Spectral light meter
Product Descriptions
Traditional lux meters are increasingly being replaced by spectral light meters such as the MSC15. However, the lighting industry also needs high accuracy spectral light meters that can handle more complex measurements. These include measurement of pulse width modulated light and the ability to measure both internal and external illumination, determination of thermal transient behavior of lamps, and so on. The primary criterion that such meters must always meet is the quality of their photometric features. Additional electronic features may improve usability and display quality, but they cannot compensate for substandard measurement results.
Manufacturers of lamps and luminaires for general lighting purposes must consider light flicker when qualifying product safety in terms of EMC immunity requirements. In addition to the influence of mains voltage fluctuations, flicker effects caused by the lamp and the luminaire itself must be taken into account.
With the BTS256-EF, Gigahertz-Optik GmbH, a renowned measuring device manufacturer, offers a universal measuring device for the determination of all relevant light parameters in general lighting. Combined with a programmable AC source, the BTS256-EF becomes a comprehensive flicker test system for lamps and luminaires including voltage fluctuation immunity tests IEC TR 61547-1:2017.
| Technical Data | |
| Short description | Spectroradiometer for the illuminance (photopic, scotopic, melanopic), PAR, spectrum, light color, color rendering index, and flicker |
| Measurement range | 1 lx to 199,000 lx, 360 nm to 830 nm, flicker frequency between 0.25 Hz and 50 kHz |
| Typical applications | Precise spectral light meter for the lighting industry |
| Calibration | Factory calibration, traceable to international standards |
| Sensor | class B DIN 5032 part 7 or AA according to JIS C 1609-1:2006 class A DIN 5032 part 7 for f1’ and f4, or general precision class according to JIS C 1609-1:2006 class L DIN 5032 part 7 for U response, IR response, f3, f6 and f7 |
| Sensor | Bi-Technology sensor with a photometric broadband detector and a array spectrometer. |
| Input optics | Diffuser window with 20mm diameter, cosine corrected field of view, f2 Error ≤ 3% |
| Filter | Spectral responsivity with fine CIE photometric matching. Online correction of the photometric matching through spectral measurement data |
