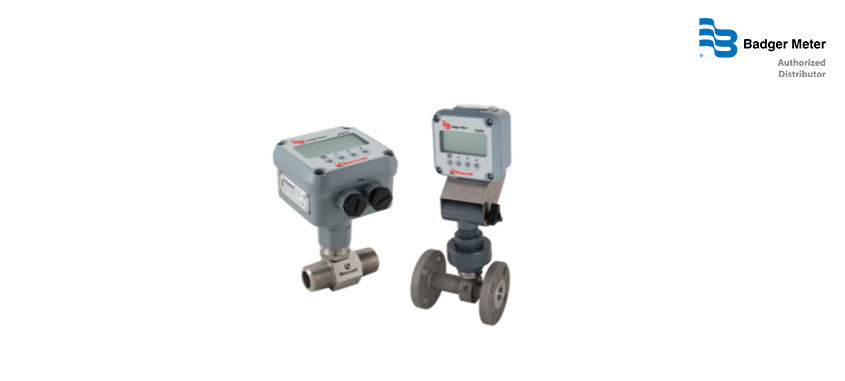

Blancett® turbine meter model 1500
Product Descriptions
Blancett® 1500 flow meters are the ideal solutions for standard clean, filtered liquid flow applications in precision industrial processes, found in the automotive, chemical/petrochemical, aerospace and general industries.
| Technical Data | |
| Material | Housing: 316 stainless steel |
| Rotor: 17-4 stainless steel | |
| Bearings: Ceramic | |
| Rotor shaft: 316 stainless steel | |
| Measuring range | 0,95 – 948 l/min |
| Size | ¼” – 2″ |
| Flow accuracy | ±0,5 % of reading |
| ±0,25 % of reading monitor and linearization | |
| Repeatability | ±0,02 % |
| Calilbration | Solvent (NIST traceable calibration); 10-Point calibration |
| Pressure ratings* | 408 bar max. |
| Operating temperature | -65 °C up to +148 °C |
| End connections | NPT, Flange |
