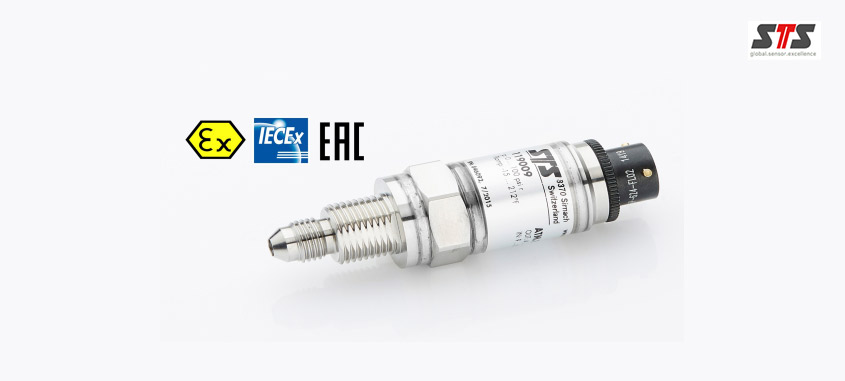

ATM.1ST/Ex – High Precision Transmitter
Product Descriptions
| Features | |
| Pressure measuring range | : 50 mbar … 1000 bar |
| Accuracy | : ≤ ± 0.10 / 0.05 % FS |
| Operating temperature | : -40 … 125°C |
| Process temperature | : -40 … 150°C |
| Output signal | : 4 … 20 mA |
| Total Error Band | : ≤ ± 0.15 %FS (0 … 70°C) |
| Materials | : Stainless steel, Titanium |
Customer benefits
– Certificates: ATEX, IECEx, EAC, GL/DNV, ABS, Lloyds
– Any measuring ranges between 0 … 50 mbar und 0 … 1000 bar available
– Static accuracies available to 0.05 %FS
– Hysteresis and repeatability better than 0.01 %
– Piezoresistive technology suitable for static and dynamic pressure measurements
– Modular design ideal for customization to the application
– Barometrische oder negative Druckmessbereiche erhältlich
