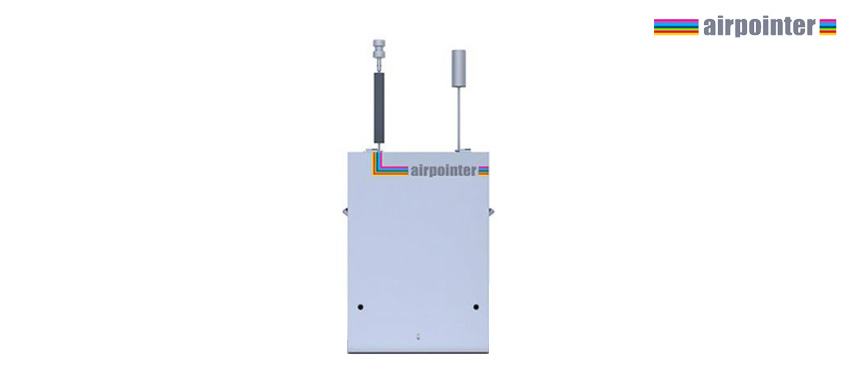

Airpointer 4D : Ambient Air Quality Station
Product Descriptions
Airpointer 4D : Ambient Air Quality Station
4 of Pollutants Standard modules
| Specifications | |
| Dimensions | 1120/782/400 mm |
| Weight | 73.9 kg/162.9 lbs |
| Power consumption | max. 670 W |
| Flow | <3000ccm/min +2000ccm/min for nephelometer |
Construction:
Well-isolated double aluminium constructionStandard monitoring modules on removable drawers
Rugged, inconspicuous burglar-proof design
Standard equipment:
Internal air conditioning and temperature control
Maintenance door
Cylinder lock (standard)
Zero air supply
Operating temperature
-20 °C/-4°F to +42 °C/108°F (optional heating for down to -40 °C/-40°F)
Options
Various types of mounting bracketsWireless communication (GPRS, 3G,…)
Sample gas conditioning (high relative humidity, high PM exposure)
Integration of external devices and instruments (e.g. 4-20 mA, RS-232, Modbus via IP,…)
Solutions to communicate with external data systems (e.g. TCP-IP, Modbus via IP, RS-232, 4-20 mA,…)
Various base frames and handling devices for on-site operation (roadside, workshop, indoor, pickup truck, trailer,…)
| Pollutants Standard modules | |
| Pollutant | Weight |
| NO/NO2/NOX1111 | Weight: 12.0 kg/26.5 lbs optional: span module |
| NH3 | Only combined with NOX module |
| O3 | Weight: 5.8 kg/12.8 lbs,optional: span module |
| SO2 (H2S) | Weight: 8.5 kg/18.7 lbs,optional: span module; optional: H2S module |
| CO | Weight: 9.0 kg/19.8 lbs,optional: span module |
More sensor modules
– Photoionisation detector (PID) for volatile organic compounds (VOC)
– Nephelometer for indicative PM monitoring (PM10, PM2.5)
– Meteorological sensors: wind direction, wind velocity, temperature, air pressure, relative humidity, precipitation, made by various manufacturers
– Traffic data sensors: traffic count, made by various manufacturers
– Noise sensors, made by various manufacturers
– Electrochemical sensors for formaldehyde, ethane, chlorine…
– For industrial applications, environmental hygiene, and indoor air quality monitoring (IAQ)
– Sensors for monitoring indoor CO2 (IAQ)
– Navigation system (GPS) for linking monitoring data with geographical data
 |
 |
