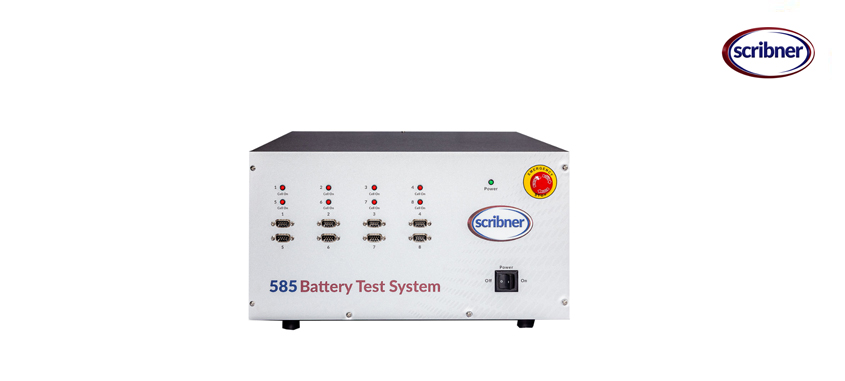

585 Battery Test System
Product Descriptions
Our 585 Advanced 8 Channel Battery Cycler is an excellent choice for Battery testing and Supercapacitors. The 585 is suitable for small to medium size cells.
Our user friendly, flexible and powerful BCycle® and BView® software is included.
• Each channel is an independent potentiostat/galvanostat
• 6 current ranges – 5 A, 500 mA, 50 mA, 5 mA, 500 μA, 50 μA (Auto)
• Gang Channels up to 20 A (2 channels)
• 5 or 6 terminal measurement
• Control modes: current, voltage, power
• HFR for internal resistance
• 100 pts/sec sample rate
• BCycle® and BView® software – user-friendly, powerful, flexible
| Voltage | |
| Set Voltage | -4 V to +6 V |
| Compliance Voltage | -4 V to +6 V |
| Maximum Current | ±5 A (8 channels); ±10 A (4 channels); ±20 A (2 channels) |
| Current Ranges | 5 A, 500 mA, 50 mA, 5 mA, 500 μA, 50 μA (Auto) |
| Mode | Constant Current, Voltage or Power (charge, discharge) |
| Control Accuracy | |
| Voltage | ±0.1% of Positive Full Scale (at 25 °C) |
| Current | ±0.2% of Full Scale of Range (at 25 °C) |
| Measurement Accuracy | |
| Voltage | ±0.05% of Positive Full Scale (at 25 °C) |
| Current | ±0.2% of Full Scale of Range (at 25 °C) |
| Overload Tolerance | |
| Current | 110% of rating |
| Voltage | 110% of rating |
| Connection | 2, 3, 4, 5 or 6-wire (I+, I-, V+, V-, AUX+, AUX-) |
| Sampling Rate | Max. 100 Sample/s per channel (with one 585-unit per computer) |
| Impedance | 2 frequency HFR; user-defined frequencies (1 Hz to 1 kHz) |
| Host Interferance | USB, full-speed |
| Channels | 8, independent, not electrically isolated from each other or USB interface |
| Dimensions | 43 cm W x 22.5 cm H x 54 cm D (17 in. x 8.8 in. x 21.3 in.) |
| Weight | 20 kg (42 lbs.) |
| Environment | 5 to 35 ° C |
| Power | 100-240 V, 50/60 Hz |
